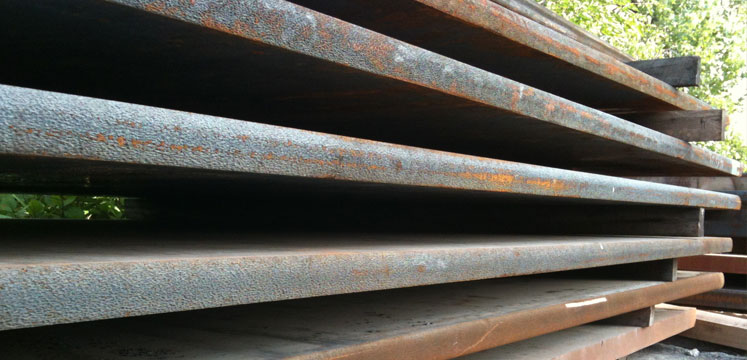

Sanghvi Metals is recognized fabricator, producer, trader and stockist of a comprehensive range of SA 516 GR.60 Steel Plate. We are manufacturing optimum quality plates that are widely appreciated by our worldwide clients. These plates consist of the chemical composition of the maximum level of carbon, some amount of manganese, phosphorous, sulfur and silicon. Our SA 516 GR.60 Steel Plates perform efficiently even in raised and cryogenic temperatures. These plates are highly resistant to corrosion, deterioration, and erosion. These pressure vessel and boiler plates are used in different kinds of applications and industrial sectors. We are designing SA 516 GR.60 Steel Plates using finest quality raw material that is tested before the use and chosen according to the set material standards. Our plates have excellent mechanical properties and durability to sustain in high temperature and pressure conditions.
Sanghvi Metals is engaged in offering a wide range of SA 516 GR.60 Steel Plates in different sizes, wall thickness, grades, and specifications that meet perfectly to the diverse needs of industries. We continuously keep on improving and enhancing the quality of plates by making use of modern tools and machinery. We have experienced and professional manpower that design SA 516 GR.60 Steel Plate in compliance with the national and international quality standards. These plates show numerous excellent characteristics like robust structure, superior finish, longer working life, excellent corrosion resistive properties and toughness. Due to these features, our plates are highly in demand and easily used in various types of industrial services. These plates are available in considerable stock to complete the urgent requirements of our customers. Our manufacturing unit is facilitated with advanced equipment and modern machinery to ensure the best service.
Specifications : ASTM SA516 / ASME SSA516
Grade : ASME SA 537 Gr.60 Boiler and Pressure Vessel Steel Plates
Thickness : 5mm-150mm
Width : 1000mm-4500mm
Length : 3000mm-18000mm
Impact tested : -52° C
Tempering : Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
British Standard | European Norm | ASTM/ASME | DIN |
BS1501-161-430A | EN10028 P265GH | A/SA516 - Grade 60 | DIN 17155 HII |
C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
485-620 (70-90) | 260 (38) | 17 | 21 |
